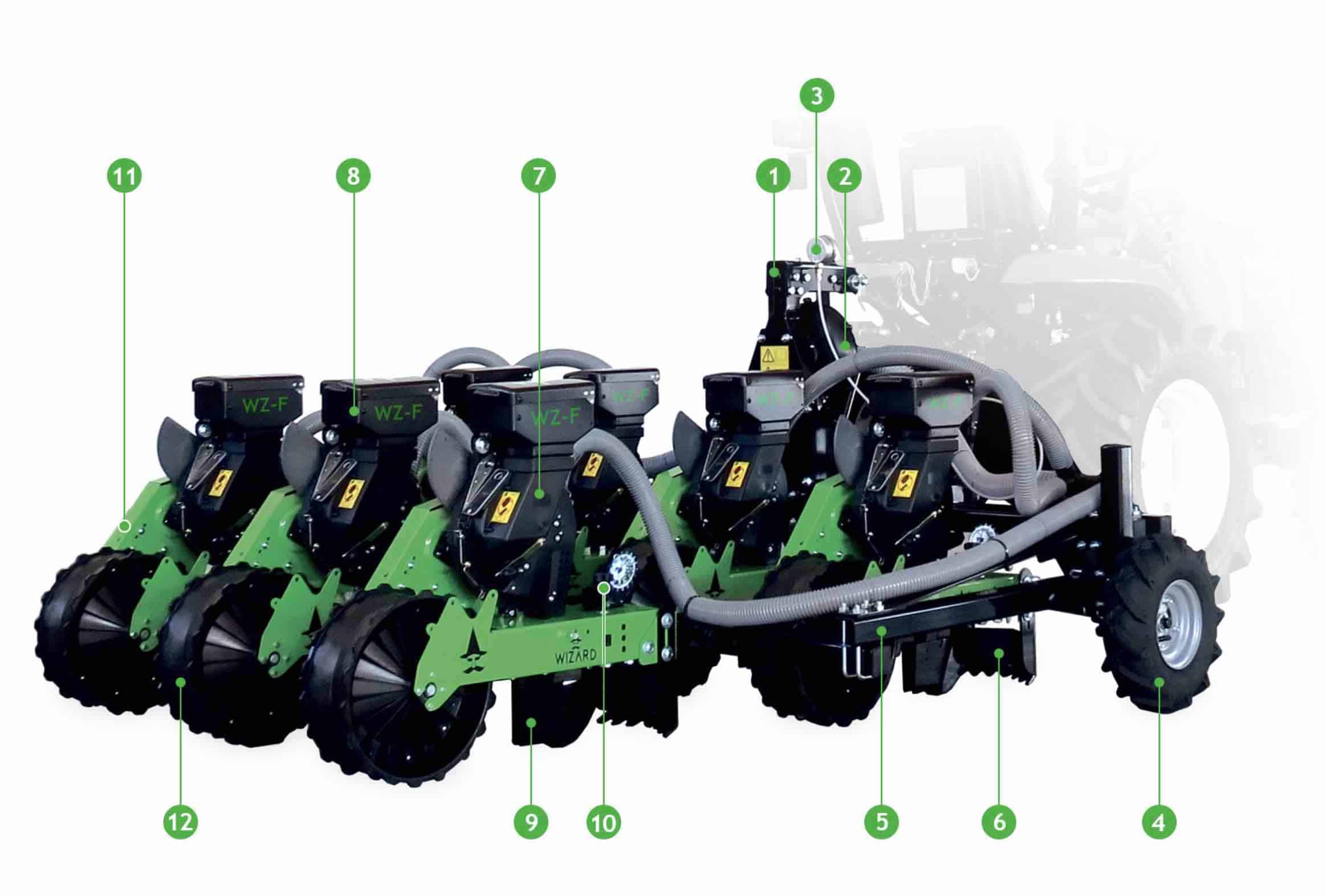

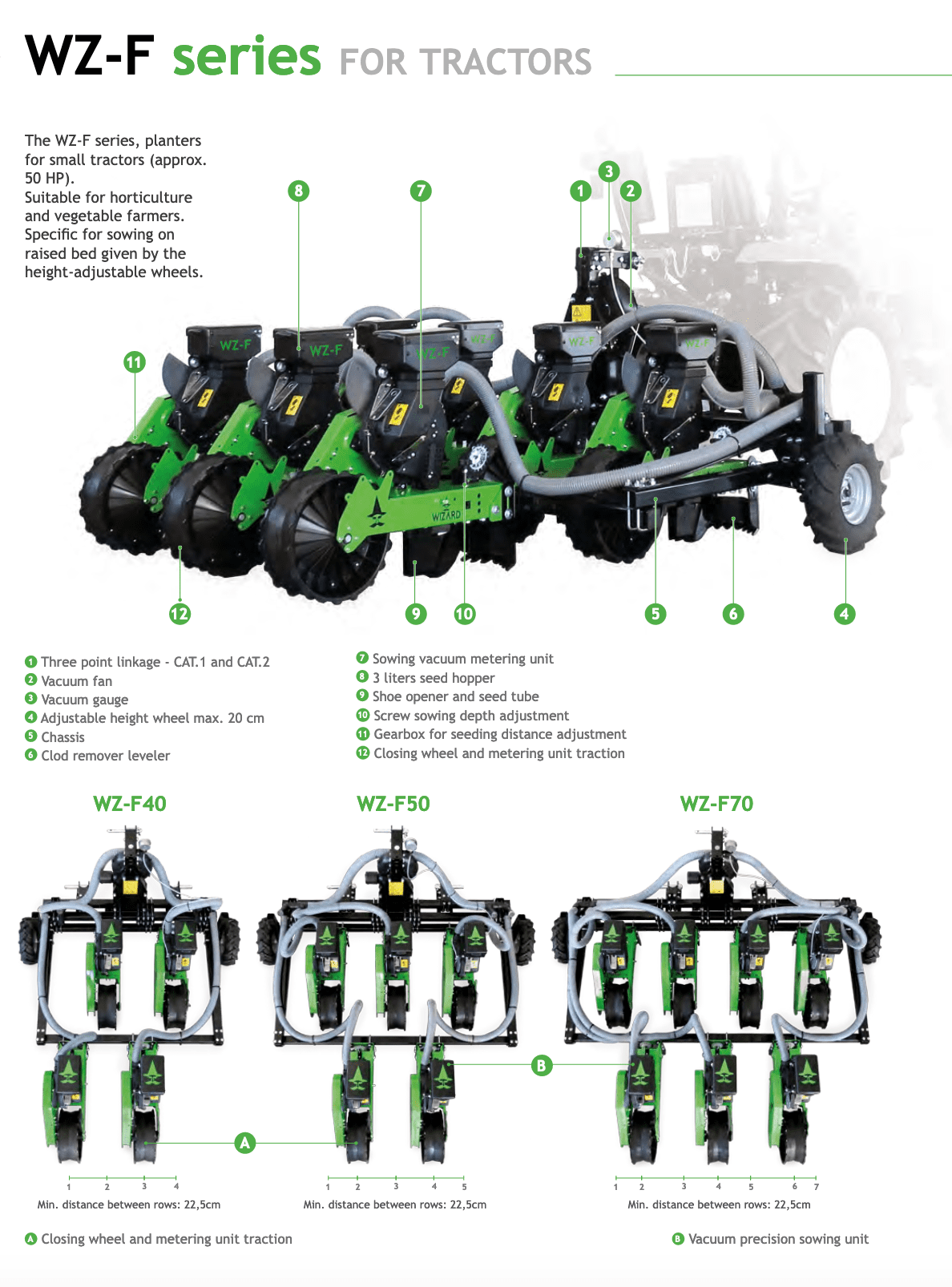

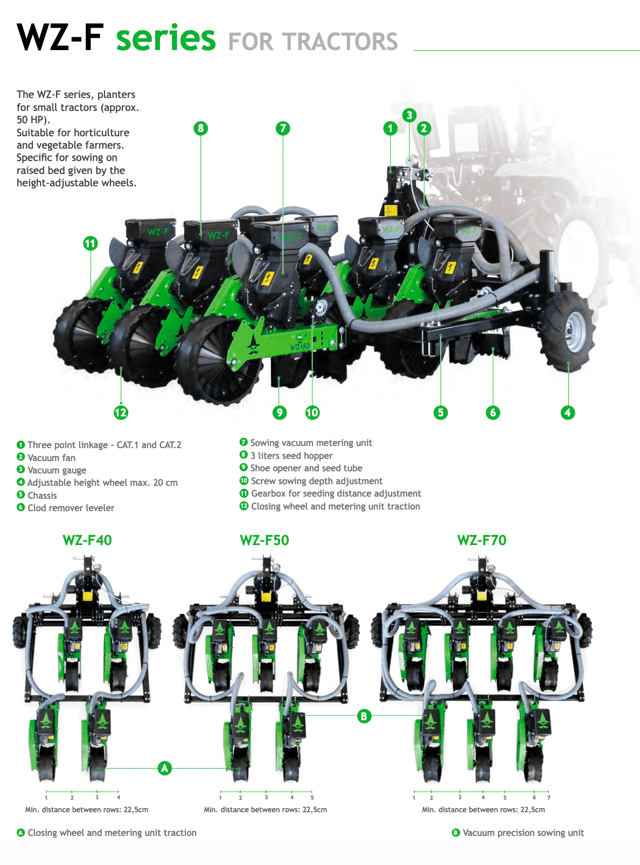

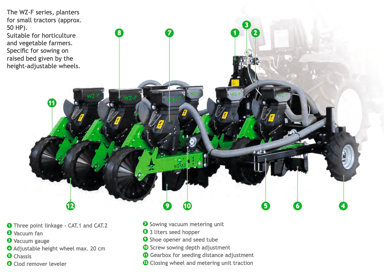

STANDARD EQUIPMENT

1. Three point linkage – CAT.1 and CAT.2
2. Vacuum fan
3. Vacuum gauge
4. Adjustable height wheel max 20 cm
5. Two Tier Chassis/Toolbars
6. Clod remover leveler
7. Sowing vacuum metering unit
8. 3 litre seed hooper
9. Shoe opener and seed tube
10. Screw Sowing depth adjustment

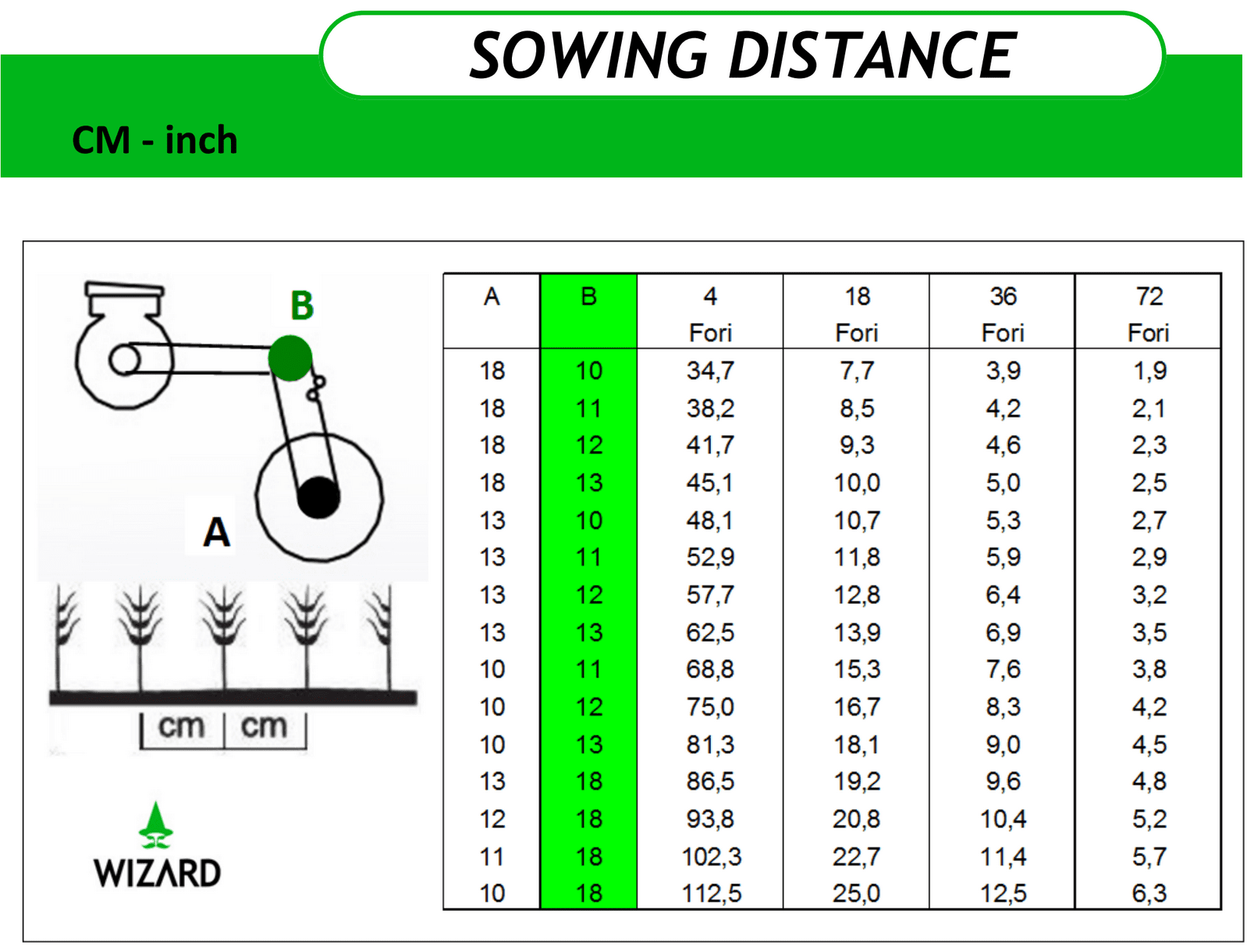

11. Gearbox for seeding distance adjustment
12. Heavy closing wheel and metering unit traction

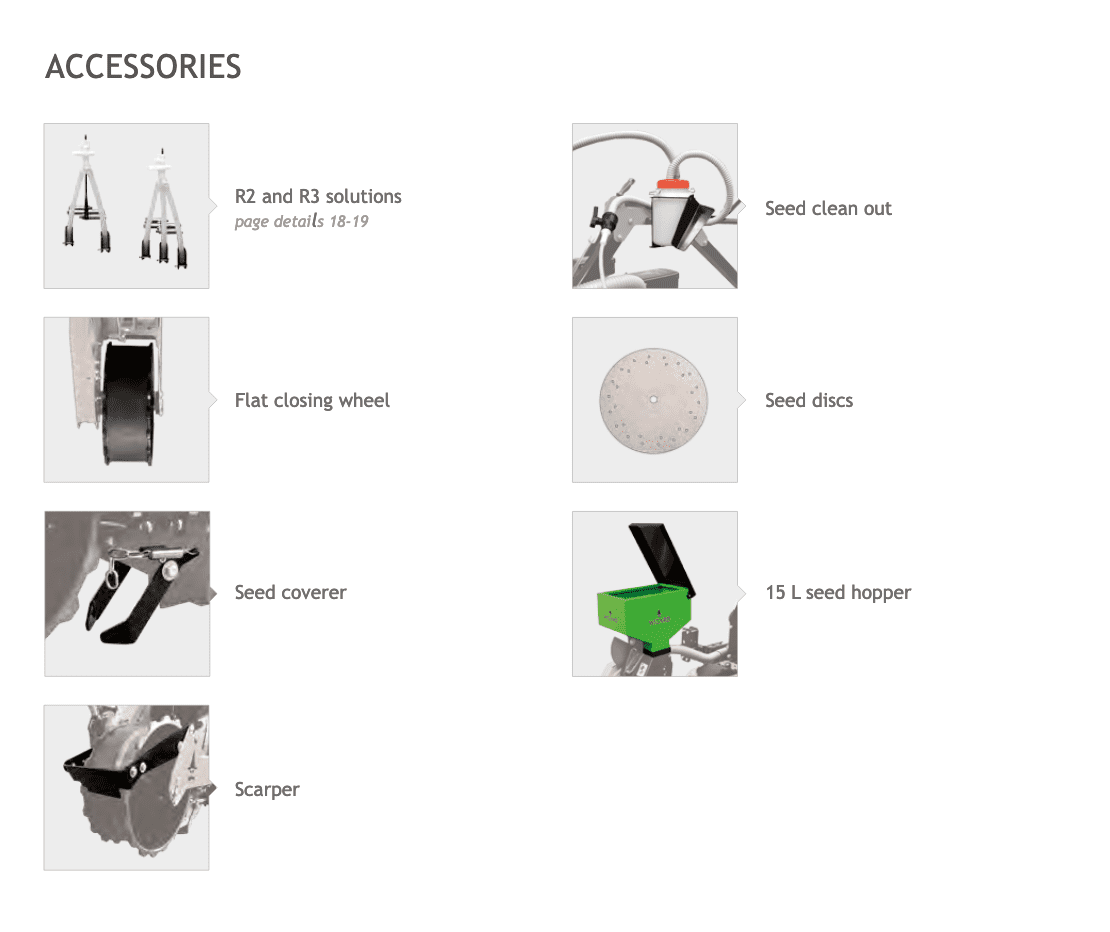

OPTIONAL FEATURES

• Seed discs: Single line (DS-1 and DSS type), Two line (DS-2), Three line (DS-3)
• R2/R3 Multi-line sowing kit: Two and three row seed dispenser kits including specialised seed shutes and plow shoe
• 15 Litre seed hopper: Provides added sowing duration for larger seed
• Seed Clean-Out kit: Recommended for small seed, vacuum powered
• Scraper for closing wheel: Recomended for sowing in damp soil conditions
• Double disc opener shoe: (Single line only) Recommended for clumpy soil and for displacing residues
• Single line seed coverer kit: Assists seed-soil contact with smaller seed
• Flat closing wheel (required for R2/R3): Also recommended with single row seeding in clumpy soil

WZ-F CUSTOMISED

We can warehouse fit your chosen options before sending or send them for you to add on as required. Please refer to the WZ – Accessories page here

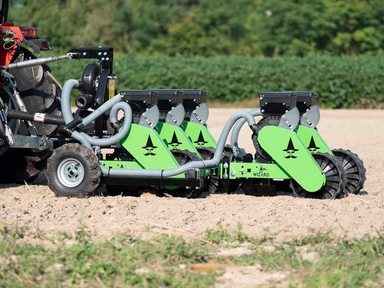

Accuracy and adaptability

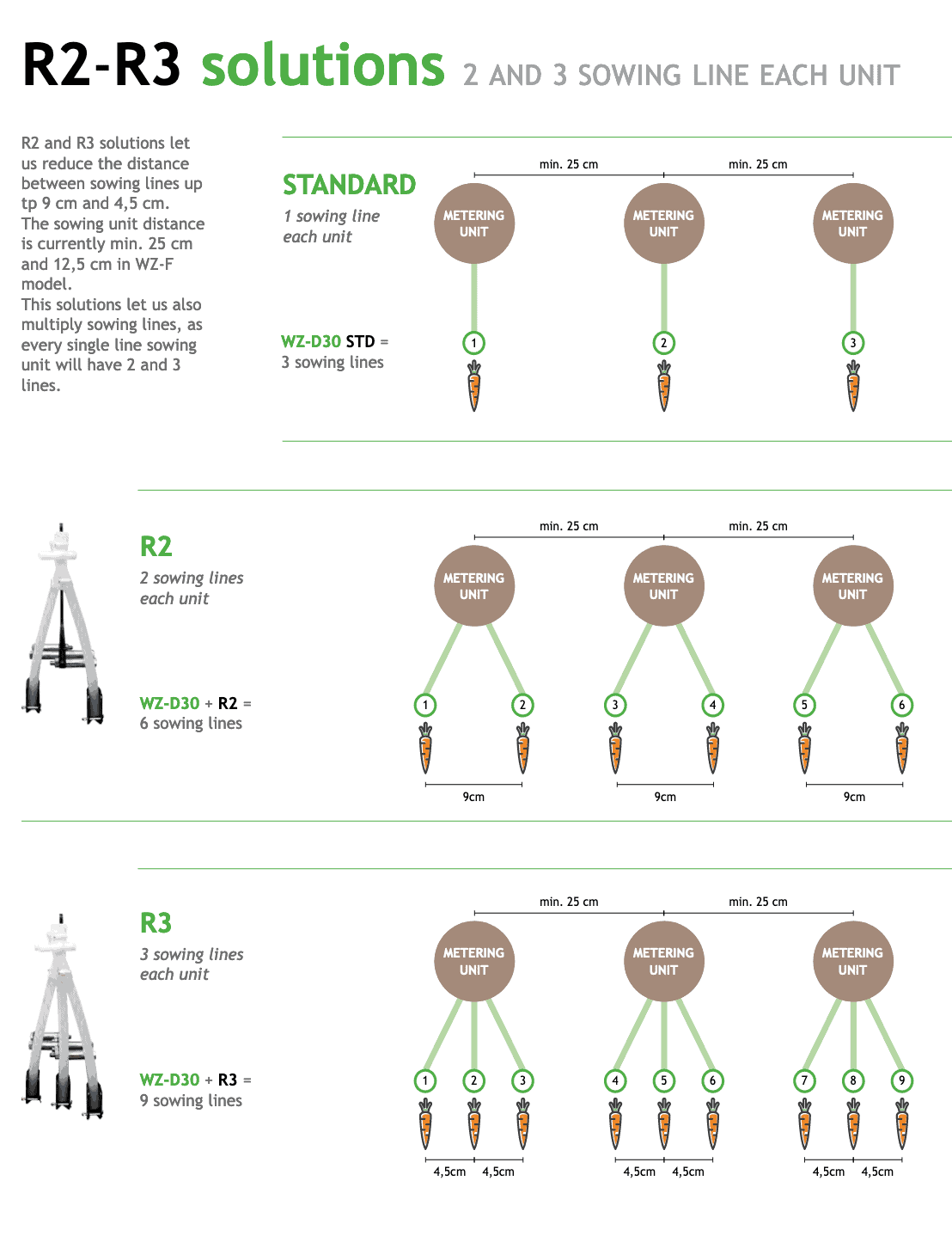

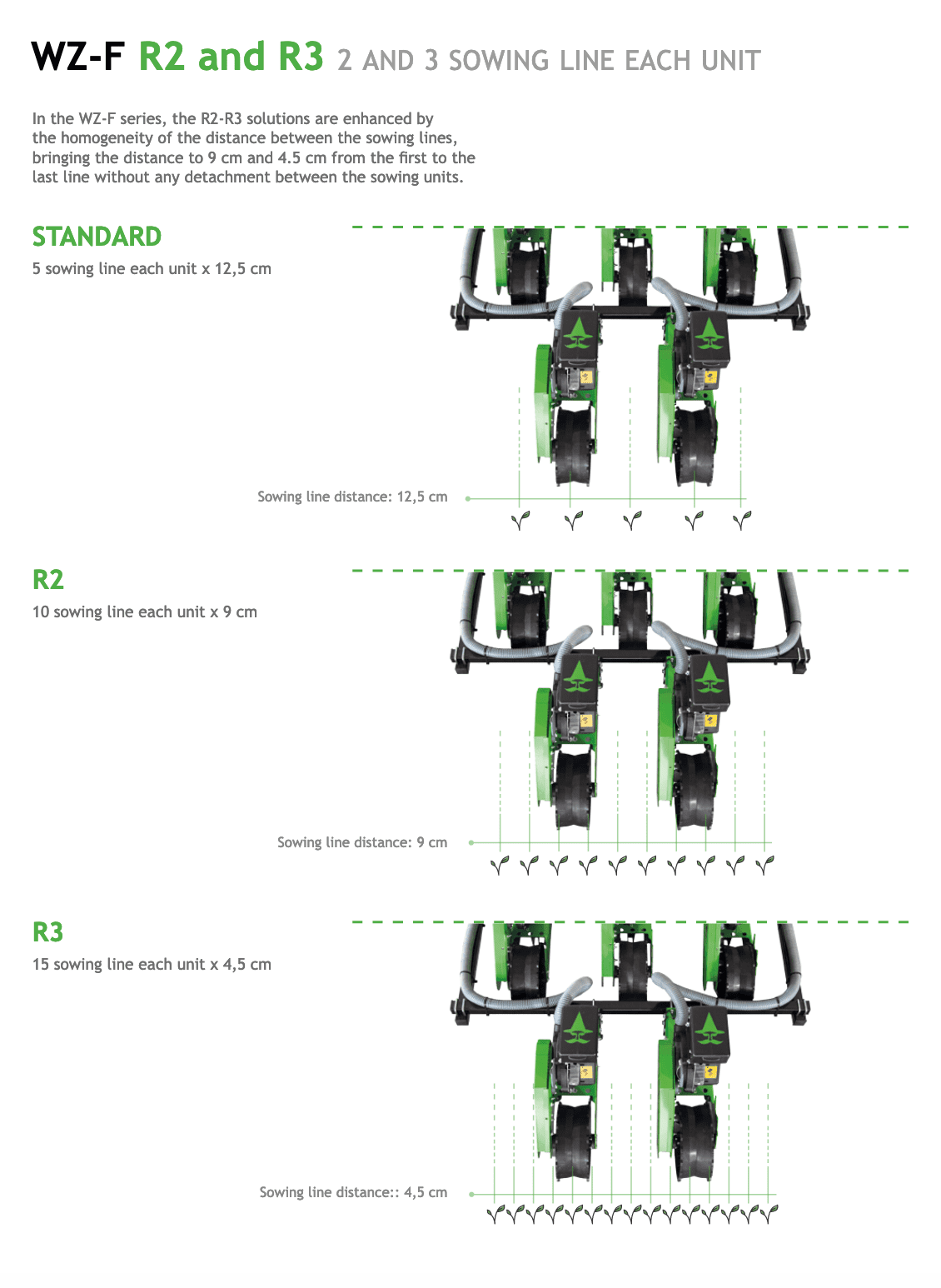

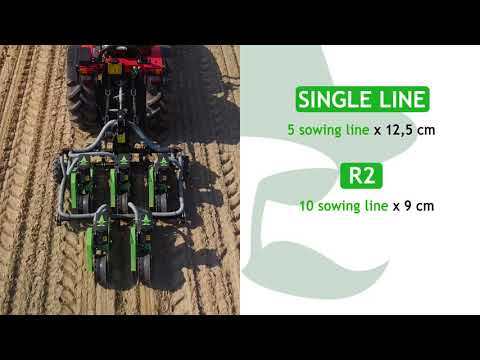

Wizard seeders, being equipped with a vacuum metering unit, stand out for their adaptability to different types of seeds. The seeder can sow small seeds such as carrots, onions, salads and many more up to larger seeds such as corn, beans, soybeans and many others. The change of the type of seed and the sowing distance on the row is made with simple and quick adjustments. The seed metering unit is designed to work even at much higher speeds than the actual working speed of 4kph, this guarantees high precision. The adaptability of the Wizard vacuum metering unit is also given by the sowing systems R2 and R3, allowing two and three row lines with each of small vegetable seed per sowing unit.

These systems transform each single sowing unit with 1 line into 2 and 3 sowing lines in a very short time and without using tools. They can be applied to all our models and have the advantage that the seeder can be transformed in a short time and therefore switch from sowing pumpkin, courgettes, corn etc. to the specific sowing of vegetables quickly. Our planters are adaptable to a wide range of users as well as crops. They can be used in greenhouse and in open field, by seed producers or by those who have small plots of land to reduce costs.

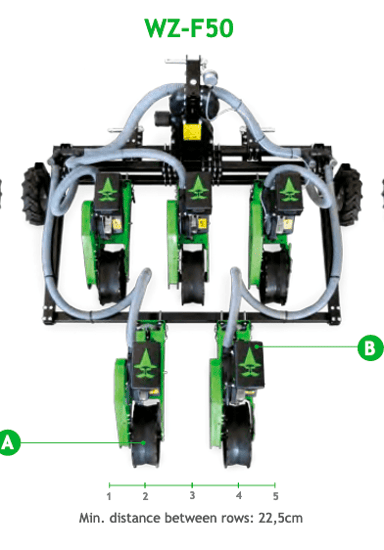

Modularity and manageability

The modularity of our seeders allows to satisfy the need, by adapting the same machine from sowing crops that need a large surface for the germination, such as pumpkin, corn, courgettes, melons etc. to crops that need less surface like most vegetables. The gearbox mounted on each sowing unit allows great modularity and customization of the seeders.

This modularity allows considerably reduced the parking dimensions. The reduced weight and size of the Wizard range allows easy handling, even inside greenhouses as well as in transportation. All this while maintaining the sowing quality that distinguishes precision pneumatic sowing.
