Trellis Cable Kit

$98.48$376.47 AUD excl gst

Add your chosen number of Trellis Cable wires to your Cocoon Tunnel or other structure. We recommend a maximum of 4 kits per Cocoon.
Trellis cable kits for Cocoon Tunnels provide a single stainless steel cable that spans the length of your tunnel, attaching to the tunnel ends with the assistance of Brace Bands.
Two options for attachment are provided: 1. Attach to end hoops, use with overhead hangers or 2. Attach to end hoop door header pole or cross bracing trellis poles, use by resting over the top of cross bracing trellis poles.



Product Type: , , Brand Catalogue:

To purchase your Trellis Cable Kit:

1. Select a cable with end attachments to match your tunnel length.
2. Select your Tunnels hoop spacing to provide correct quantity of Overhead Hangers
3. Select number of kits required.

Option 1. Swaged cable with 130mm Overhead Hangers and end attachments

Attach overhead hangers to hoops.

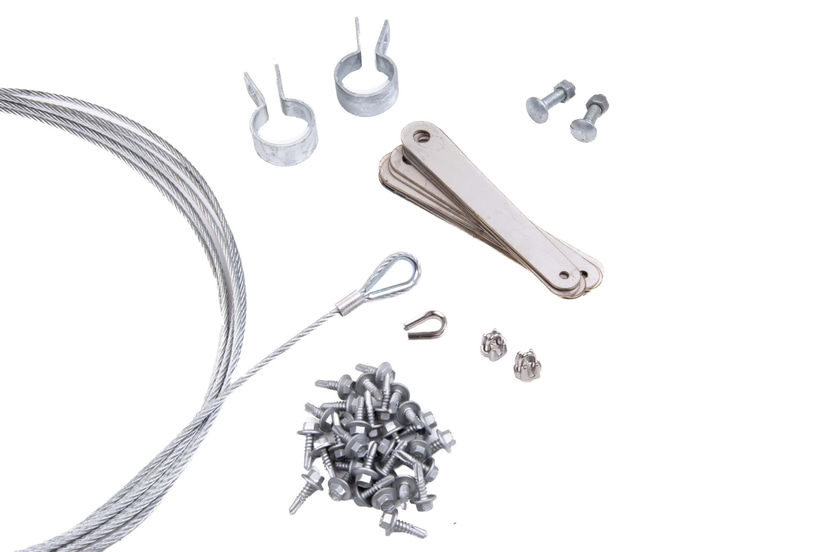

Each Trellis Cable Kit contains;

  • 3mm 304 stainless steel wire cable with a swaged eyelet on one end, 500mm longer than the Kit length. Example: a 15m kit has a 15.5m cable, allowing enough cable at the non swaged end to be double clamped with the clamps provided.

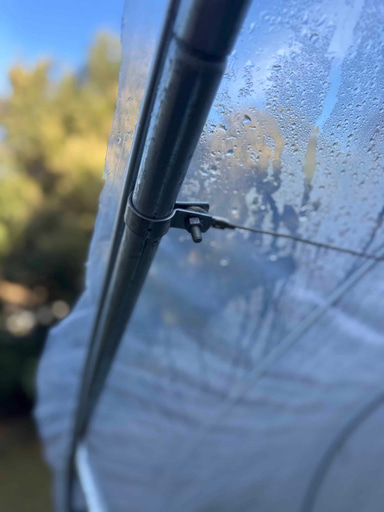

  • 2 x 35mm Brace Bands to for attachment to the end tunnel hoops.
  • 130mm stainless steel droppers and 12g Self driving screw for every hoop connection point.
  • 2 x 3.2mm clamps for attaching cable at other end.
Recommended minimum Cocoon set up for use with Option 1.
Highly recommended:
  • Wind Bracing
  • Solid Centre purlin

Recommended:

  • 400mm Lift Kit or Pro Tunnel



Option 2. Swaged cable with end attachments

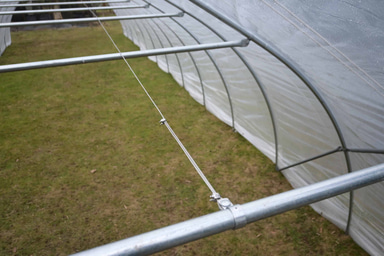

Attach to end hoop door header pole or cross bracing trellis poles.

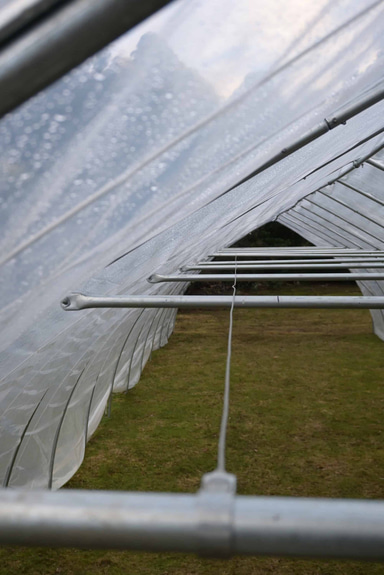

This option does not use hangers, instead the Trellis Cable Kit will be supported by existing cross bracing trellis poles and attached at either end by 35mm Brace Bands to the end hoop door header pole or cross bracing trellis pole. NOTE: To avoid the header pole being pulled inwards from crop weight we recommend using our telescopic pole diagonally by attaching from the centre of the header pole on the last hoop, upwards and inwards to the centre purlin pole just before it intersects with the 2nd hoop, (see image).

Each Trellis Cable Kit contains;

  • 3mm 304 stainless steel wire cable with a swaged eyelet on one end, 500mm longer than the Kit length. Example: a 15m kit has a 15.5m cable, allowing enough cable at the non swaged end to be double clamped with the clamps provided.

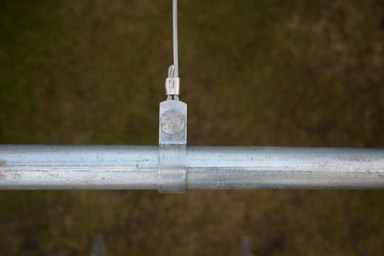

  • 2 x 35mm Brace Bands to for attachment to the end hoop Door Header Pole/Cross Trellis Bracing Pole.
  • 2 x 3.2mm clamps for attaching cable at other end
Recommended minimum Cocoon set up for use with Option 2.
Required:
  • Steel Framed End Walls or
  • Cross Bracing Trellis Poles
  • Solid Centre purlin

Recommended:

  • Telescopic Poles for diagonal support of Header Pole.
