Furrower / Ridger
$359.44 AUD excl gst

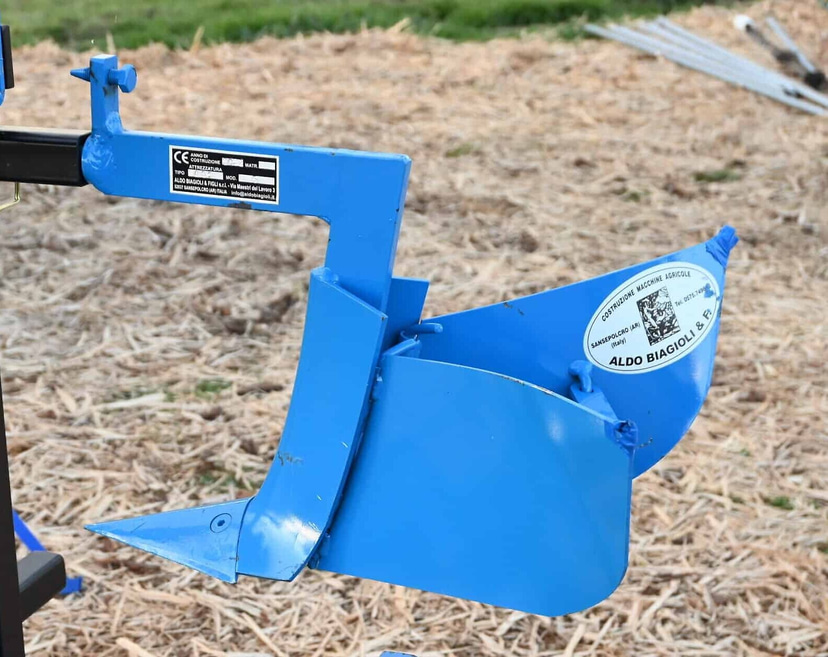

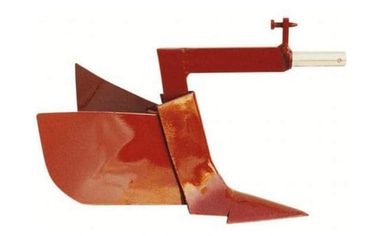

The Biagioli AS15 Furrower/Ridger is used to create furrows in tilled soil for planting or hilling crops and for making drainage ditches
Brand Catalogue: Aldo Biagioli

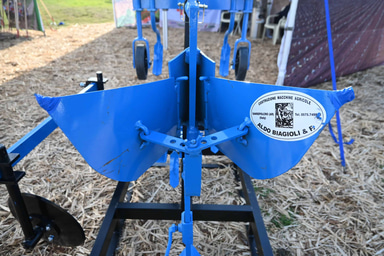

Adjustable: Designed for use with BCS walking tractor models, the AS15 ridger/furrower consists of a V shaped frame/shear and 2 adjustable mouldboards
Operation: The AS15 frame and shear penetrate the soil and the mouldboard wings displace soil to the side opening the furrow
The Biagioli AS15 furrower/ridger is recommended for walking tractor models 8.5kW and above with 6.5/80-12 wheels and 34kg weights
REQUIRED
- BCS walking tractor (BCS, Ferrari, Pasquali) with 6.5/80-12 tyres
- Biagioli AT.30 tool carrier: Either 2 bolt hitch or BCS Quick Hitch fitting
- BCS Ballast weights: 34kg weights recommended
TECHNICAL FEATURES
- Minimum power required: 8.5 kW
DIMENSIONS AND WEIGHTS
- Model: AS15 – Weight 9 kg
